Details

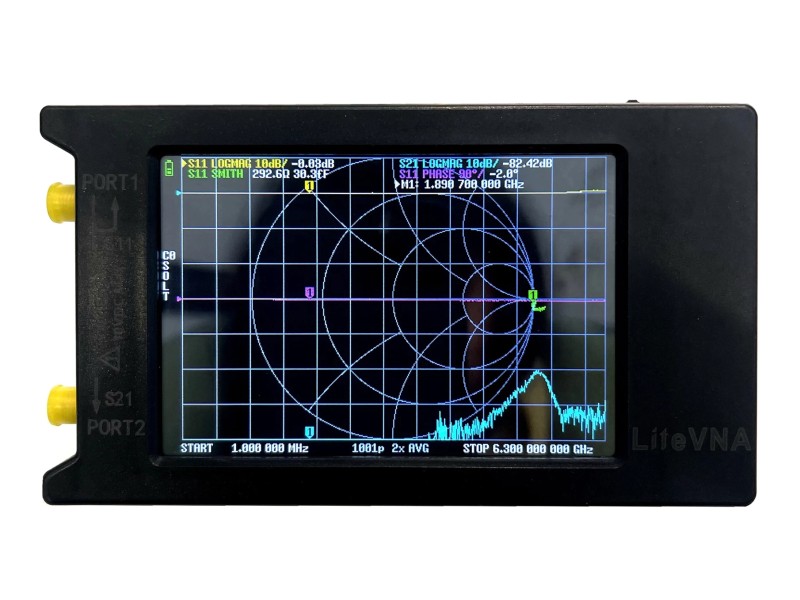

The LiteVNA is a portable 50 kHz – 6.3 GHz vector network analyzer which design is based on the NanoVNA and SAA2. This vna is designed to measure equipment reflection and transmission coefficients without the need for a large analyzer. The LiteVNA uses one mixer which enables S11 and S21 measurements through RF switching and TDR/DTF measurements through IFFT calculations.
The analyser has a 3.95″ touch-screen display that can show the measurements in 10-1001 data points. Furthermore, the analyser has a built-in 2000 mAh battery and can be connected to an android phone or PC. Connecting to a phone or PC allows for controlling the analyser and displaying the measurements.
Specifications
| Frequency range | 50 kHz – 6.3 GHz |
| Dynamic range | >70 dB (<3GHz) >50 dB (≥3GHz) |
| S11 noise floor | <-50 dB (<3GHz) <-40 dB (≥3GHz) |
| Frequency stabilit | <0.5ppm |
| Sweep rate | >550points/s |
| Sweep points | 10-1001 points (device) 1-1024 points (USB) |
| Display | 3.95″ TFT LCD Touch-screen (480×320) |
| Power | Li-polymer 2000 mAh battery (USB charged) |
