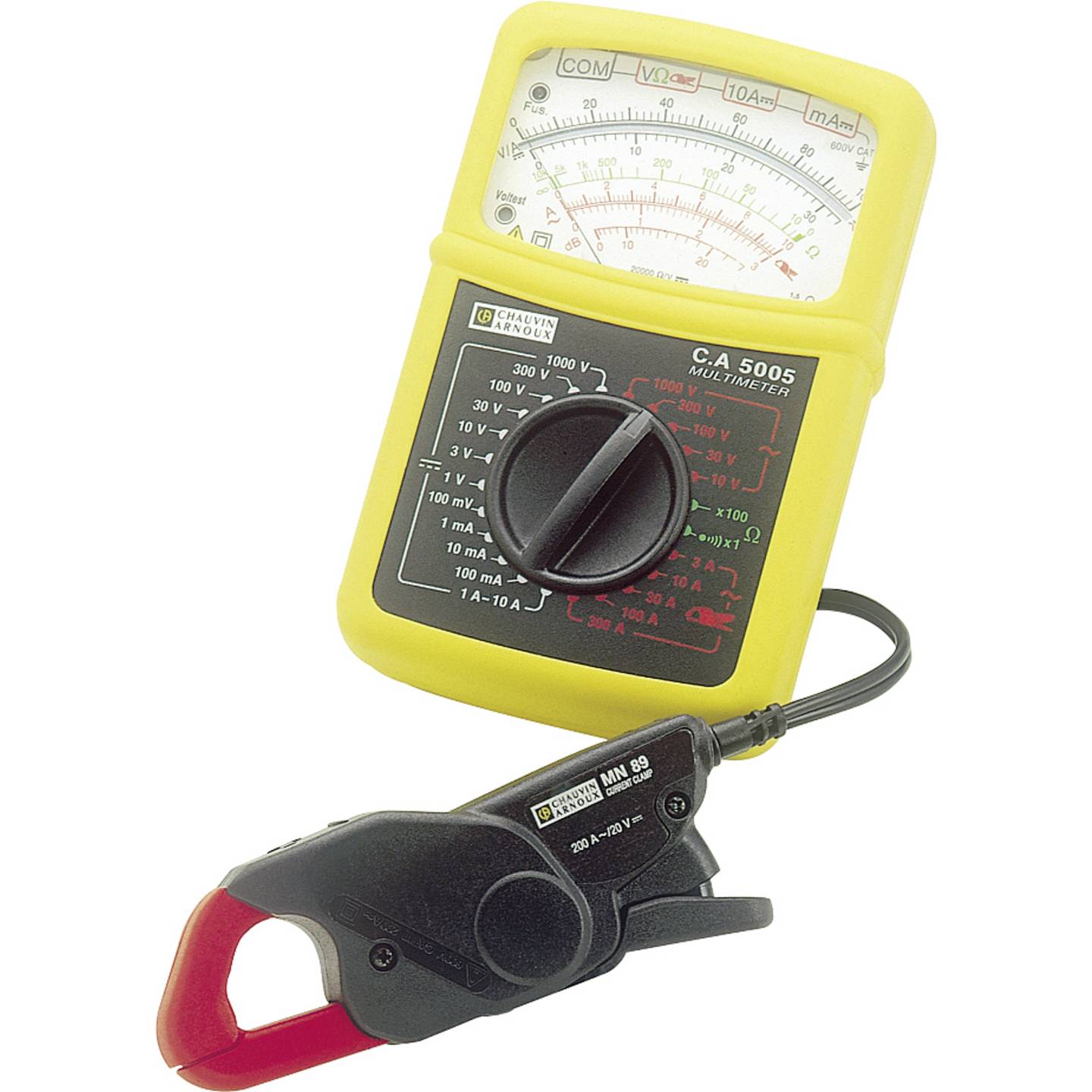

C.A 5005 analogue multimeter incl. Mini-pliers MN 89 and transport case
Highlights & Details
- Analogue multimeter with compact and shock-proof casing with foldable standing bracket
- ‘Fus’ illuminated display for showing the status of fuses for the current measuring ranges
- Offers a µA measuring range for particularly small currents
- With electronic protection and high-power fuses
- Automatic zero adjustment in the ohmmeter function
- Illuminated display “Voltage test” signals the presence of external voltages during resistance measuring and continuity testing
- Direct reading of motor currents with the MN 89 pliers
- BASIC FUNCTIONS V AC, V DC, A AC, A DC, RESISTANCE, Acoustic Continuity testing
-
Technical specifications
- Typical accuracy:
- 1.5 % at V.
- 2.5 % at V/AC and A
- 10 % at Ω
- Voltage DC reading range (max.)
-
1000V
- V AC reading range (max.)
-
1000V
- A DC reading range (max.)
-
10A
- Amperage reading range AC (max.)
-
300A
- Reading range – resistance
-
5 Ω to 1 MΩ
- Frequency range
-
10 Hz up to 100 kHzHz
- Height
-
160mm
- Width
-
105mm
- Length
-
56mm
- Weight
-
500g
-
Manufacturer’s standards (no certificate)
- Reading category
-
CAT III 600 V
CAT IV 300 V
- Voltage metering
-
AC
DC
- Current reading
-
AC
DC
- Type
-
C.A 5005 + MN 89
- Display
-
Analogue
- Dim
-
(L x W x H) 56 x 105 x 160 mm
