Description

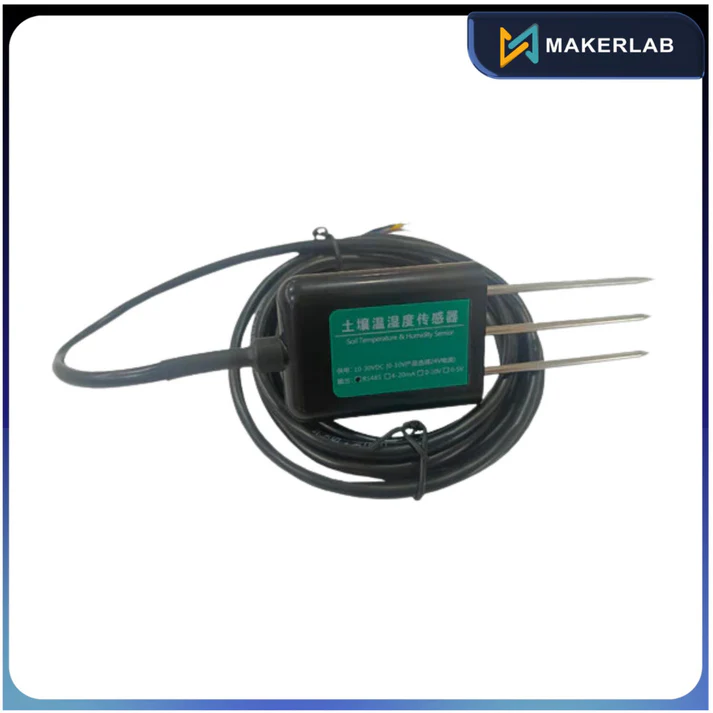

This is an Industrial 3-in-1 Soil Sensor, designed as an all-in-one solution for monitoring essential soil conditions. The sensor measures Moisture, Temperature, and EC (Electrical Conductivity) levels, helping you make data-driven decisions for irrigation, fertilization, and overall crop management.
This new soil sensor is an upgraded version of the 3-in-1 soil sensor and comes with a provided datasheet for easier integration and reference.
Equipped with MODBUS RTU RS485 support, it ensures seamless integration into your industrial control system for efficient data collection and analysis. The sensor features 3 metal probes for accurate and reliable readings and 3 wires (RS485 A, RS485 B, V+) for a simple and secure connection to your industrial controller.
Features
- Parameters measured:
- Moisture
- Temperature
- EC
- Supports MODBUS RTU RS485
- Operating Voltage: 4.5 – 30V
- Operating Current: 20mA
- Device ID / Address: 0 – 254 (Default ID is 1)
- Baud Rate: 4800 and 9600 (Default Baud Rate is 4800)
- Measurement Range:
- Temperature: -40 – +60 ℃ (with 0.1 ℃ resolution)
- Moisture: 0 – 100% (with 1% resolution)
- EC: 0 – 20000 uS/cm (with 1 uS/cm resolution)
- Waterproof: The probe and the module are waterproof. But the wires connecting to your controller are not waterproof. Please route your wire properly using a cable gland or anything similar to protect your connection
- Cable length: 2 Meters
- Protection Level: IP68
