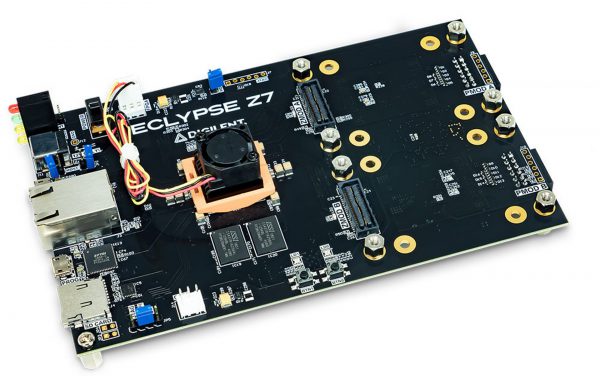

Eclypse Z7: Zynq-7000 SoC Development Board with SYZYGY-compatible Expansion

Name: Eclypse Z7: Zynq-7000 SoC Development Board with SYZYGY-compatible Expansion
Brand: DIGILENT
SKU: 8636
Price: 154800.00 DZD
Availability: InStock

د.ج 154.800,00

Disponibilité: 1 in stock

Ajouter à la liste d’envies

Category:BASE ZYNQ

Zynq-7000 APSoC	Chip number: XC7Z020-1CLG484C 667 MHz dual-core Cortex-A9 processor DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C Programmable from JTAG, Quad-SPI flash, and microSD card Programmable logic equivalent to Artix-7 FPGA
Memory	1 GiB DDR3L with 32-bit bus @ 1066 MT/s 16 MB Quad-SPI Flash with a factory-programmed 48-bit globally unique EUI-48/64™ compatible identifier microSD card slot
Power	Powered from external 12V 5A supply Platform MCU for configuration of adjustable power supplies and temperature management
USB and Ethernet	Gigabit Ethernet PHY USB-JTAG programming circuitry USB-UART bridge USB micro AB port with USB 2.0 PHY with Host/Device/OTG capabilities
Zmod Ports	2 ports following the SYZYGY Standard interface specification Compatible with a variety of SYZYGY pods, allowing for a wide variety of applications Dedicated differential clocks for input and output 8 differential I/Os per port 16 single-ended I/Os per port DNA interfaces connected to Platform MCU allowing for various auto-negotiated power supply configurations Supports the Digilent Zmod AWG 1411, Scope 1410, Scope 1210, and Scope 1010
Pmod Ports	2 twelve-pin ports for a total of 16 FPGA-connected I/Os High speed voltage translation and protection circuitry
User GPIO	2 push-buttons 2 RGB LEDs
