Product Specification
| Country of Origin | Made in India |
| FPGA | Xilinx Spartan 6 XC6SLX9 TQG144, 9152 Logic Elements, 589824 bits of Block RAM |
| WiFi | ESP-12F WIFI Modem |
| VGA | 12-bit, 4096 Color |
| Camera | OV7670 CMOS Camera |
| ADC | 8 channel 12-bit SPI ADC, 6 channel available at J7 Connector. |
| Audio | Stereo Jack |
| Seven segment Display | 4-Digit 7 Segment Display |
| LCD | 2×16 Character LCD |
| DAC | 12-bit SPI DAC output at J7 Connector |
| JTAG | USB JTAG for Programming and Debugging. Fully Compatible with Xilinx ISE Tool. |
| Micro SD | Yes |
| SPI FLASH | 64 Mb FLASH for FPGA Configuration |
| Sensor | LM35 Temperature Sensor 1, LDR Sensor2 |
| Slide Switch | 16 Nos of SPDT |
| TFT | 1.8 inch SPI TFT, 128X160 |
| UART | USB UART can communicate at different baud rate |
| Purchase | Visit allaboutfpga dot com to buy the FPGA kit |
| Minimum Order Quantity | 1 Piece |
Product Description

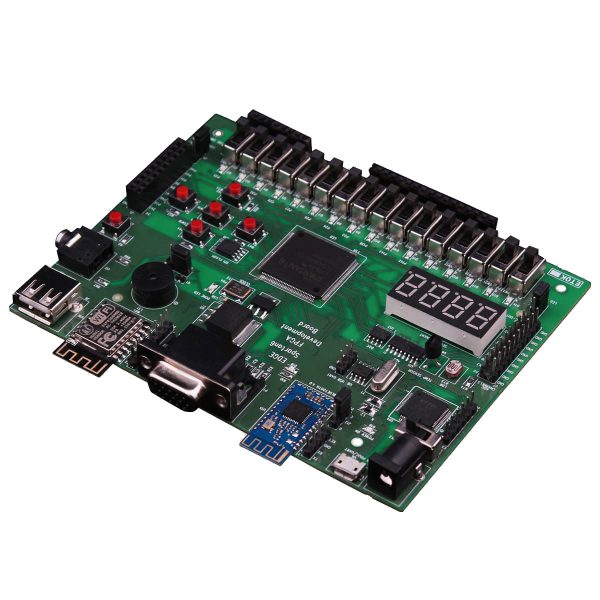

EDGE Spartan6 FPGA Development board is the feature rich development board with Spartan6 FPGA, SPI FLASH, ADC, DAC, LCD, 7 segment Display, WiFi and Bluetooth. The Board also provides additional interface like CMOS Camera and TFT Display at the expansion connectors.
Note: The EDGE Spartan6 FPGA Development board is fully compatible with Xilinx ISE, EDK, System Generator and ChipscopePro Tools at ease with on-board USB JTAG Interface.
Edge Spartan6 FPGA Development Board consist of following Features:
Xilinx XC6SLX9 Spartan-6 FPGA IC
8MB SPI FLASH Memory
On-Board USB JTAG Programmer
USB to UART Interface
CMOS Camera
SPI TFT Display
WiFi 802.11 b/g/n
Bluetooth 4.0 BLE
Bluetooth 4.0 BLE
8 Channel SPI ADC
50 MHz Clock
Temperature Sensor
LDR Interface
SPI DAC
PS2 compatible USB interface
2×16 LCD Display
4 Digit Seven Segment Display
5v Buzzer
5 Push Button
16 LEDs
26 External I/O””s
