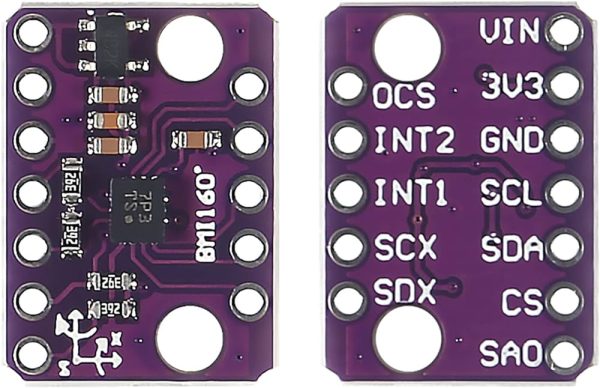

The GY-BMI160 module is based on the integrated Bosch BMI160 sensor that implements a 16-bit three-axis accelerometer and a 16-bit three-axis gyro combined with a 32-bit microprocessor. It is the ideal solution for portable applications and for all those solutions that provide for the detection of movement and movement of an object, together with the detection and measurement of the earth’s magnetic field.
Perfect for detection and measurement applications in model aircraft, drones, essential for the electronic stabilization of the bike.
It integrates six ADC converters (one for each axis) used for the accelerometer and gyroscope, ensuring maximum precision in the conversion of the detected data. To combine precision at speed, each sensor can give a programmable output in different ranges performed in the technical specifications.
The module is designed for use with a large variety of microcontrollers using the communication through the I2C bus, therefore it is suitable to be managed by Arduino and many other development kits.
TECHNICAL SPECIFICATION:
Model: GY-BMI160
IC: Bosch BMI160
Supply voltage: 3 ⁓ 5VDC
Communication protocol: I2C
Measurement range: -180 ° ⁓ 180°
Resolution: 0.01°
Repeatability: 2°
Working current: 15mA
Operating temperature: -20 ⁓ 85 °C
Storage temperature: -40 ⁓ 125 °C
