Description :

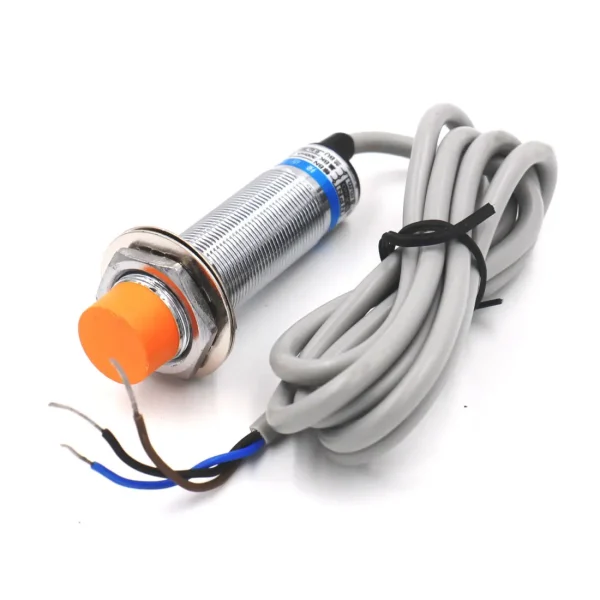

LJ18A3-8-Z/BX NPN inductive proximity sensor detection switch 8mm
Reverse power connection protection; short circuit protection, can connect to PLC directly. Used in common places with average environmental resistance. The red LED indicates that it is available to detect the working status of the sensor. Economical and simple operation. Widely used, can replace min type switch and limit switch.
features :
- Mounting Hole Diameter: 18mm;
- Cable length: 120cm/48″
- Sensing distance: 8mm ± 10%;
- Set distance: 0-7mm
- Output type: NPN normally open (no); Type without shield
- Current output: 200 mA;
- Operating voltage: 10-30 VDC
- Detect object: magnetic metal
- IP67 protection
