DESCRIPTION :

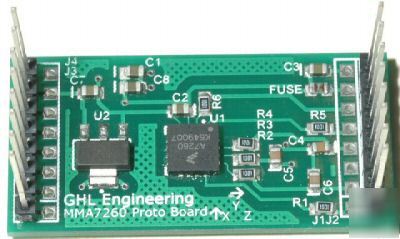

The MMA7260QT low cost capacitive micromachined accelerometer
features signal conditioning, a 1-pole low pass filter, temperature
compensation and g-Select which allows for the selection among 4
sensitivities. Zero-g offset full scale span and filter cut-off are factory set and
require no external devices. Includes a Sleep Mode that makes it ideal for
handheld battery powered electronics.
FEATURES :
• Selectable Sensitivity (1.5g/2g/4g/6g)
• Low Current Consumption: 500 μA
• Sleep Mode: 3 μA
• Low Voltage Operation: 2.2 V – 3.6 V
• 6mm x 6mm x 1.45mm QFN
• High Sensitivity (800 mV/g @ 1.5g)
• Fast Turn On Time
• Integral Signal Conditioning with Low Pass Filter
• Robust Design, High Shocks Survivability
• Pb-Free Terminations
• Environmentally Preferred Package
• Low Cost
Typical Applications
• HDD MP3 Player: Freefall Detection
• Laptop PC: Freefall Detection, Anti-Theft
• Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass
• Pedometer: Motion Sensing
• PDA: Text Scroll
• Navigation and Dead Reckoning: E-Compass Tilt Compensation
• Gaming: Tilt and Motion Sensing, Event Recorder
• Robotics: Motion Sensing
ORDERING INFORMATION
Device Name Temperature
Range
Package
Drawing Package
MMA7260QT –40 to +105°C 1622-02 QFN-16, Tray
MMA7260QR2 –40 to +105°C 1622-02 QFN-16,Tape & Reel
