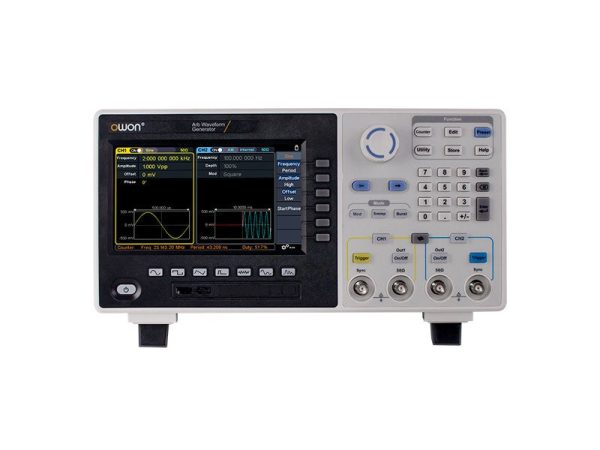

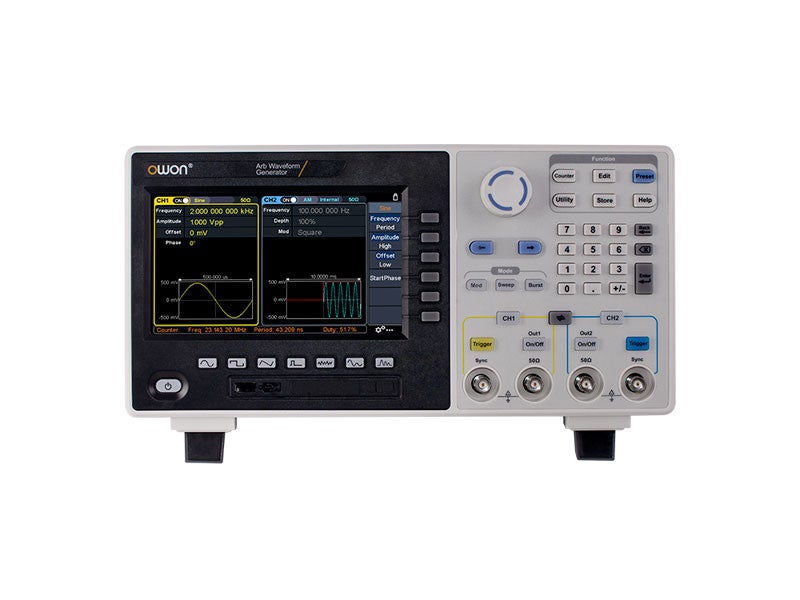

OWON XDG2060 60MHz waveform Generator
- Max 60MHz frequency output
- 500MSa/s Sample rate，Vertical resolution 1μHz
- 14 bits Vertical Resolution，10Marb waveform length
- Comprehensive waveform output : 6 basic waveforms,and 150 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep, and Burst
- High-accuracy frequency counter integrated, supported range 100mHz – 200MHz
- SCPI, and LabVIEW supported
- 7 inch (800 × 480 pixels) multi-touch screen, support
| Model | XDG2060 |
|---|---|
| Channel | 2 |
| Frequency Output | 60MHz |
| Sample Rate | 500MSa/s |
| Vertical Resolution | 14 bits |
| Waveform | |
| Standard Waveform | sine, square, pulse, ramp, noise, and harmonic |
| Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform |
| Frequency (resolution 1μHz) | |
| Sine | 1μHz-100MHz |
| Square | 1μHz ~ 30MHz |
| Pulse | 1μHz ~ 25MHz |
| Ramp | 1μHz ~ 3MHz |
| Noise (-3dB，typical) | 100MHz |
| Arbitrary Waveform | 1μHz ~15MHz |
| Harmonic | 1μHz ~50MHz |
| Accuracy | ±2ppm, 25°C±5°C |
| Waveform Length | 2 points – 10M points |
| Amplitude | |
| into 50Ω load | 1mVpp ~ 10Vpp（≤ 25MHz）； 1mVpp ~ 5Vpp （≤60MHz）；1mVpp ~ 2.5Vpp（≤100MHz）； |
| Modulation | |
| Type | AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM |
| Frequency Counter | |
| Function | Frequency， period, +width, -width, +duty, and -duty |
| Frequency Range | 100mHz ~ 200MHz |
| Frequency Resolution | 7 digits |
| Input / Output | |
| Input mode | frequency counter, external modulation input,external trigger input,Internal clock output,external reference clock input / output |
| Communication Interface | USB Host, USB Device,LAN，RS232(optional) |
| Mechanical specifications | |
| Size | 340mm x 177mm x 90mm |
| Weight | 2.3kg |
Accessories Included:
1 x XDG2060
1 x Power Cord
1 x CD Rom
1 x Quick start guide
1 x USB Cable
1 x BNC -BNC Cable
