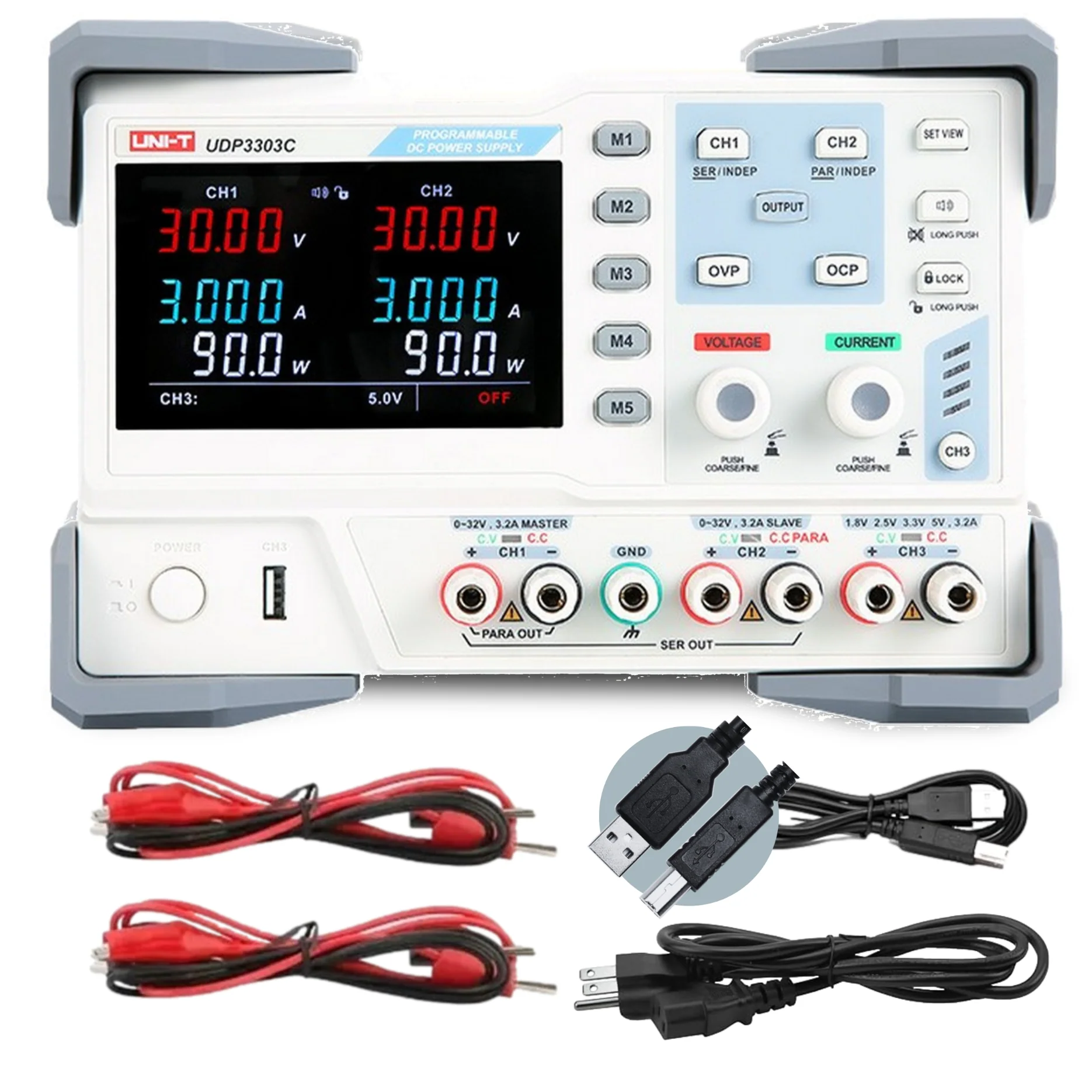

Uni-T UDP3303C DC Power Supply
Features and Specifications
- Channels: 3Ch
- Max V DC: 30VDC
- Max A DC: 3A
- Watts: 195W
- Max V Resolution: 10mV
- Max A Resolution: 1mA
- Accuracy: < 0.1%+30mV/< 0.5%+2mA
- Programmable: Yes
- AC input: 100V/120V/220V/230V, 50/60Hz
- 4-digit voltage and current display
- Constant voltage (CV) and constant current (CC) modes
- Over voltage and over current protection
- Intelligent Temperature-controlled fan
- Five sets of settings to save and recall
- Buzzer switch and key lock function
- Shutdown memory function
- Remote control
- USB, RS232 and Digital I/O
UDP3303C Overview
The Uni-T UDP3303C linear DC power supply is known for its reliable performance and clear interface. As a member of the UDP3000 series, it provides a cost-effective solution for various test requirements. One of its key features is its three independent outputs, two of them are adjustable outputs of 30V/3A, the other one is a fixed selectable output of 1.8V/2.5V/3.3V/5V/3A (fine adjustable). The total power output of the device is 195W. Designed to meet various test requirements, this power supply operates in constant voltage (CV) and constant current (CC) modes. It also includes short circuit and overvoltage protection features. The Uni-T UDP3303C DC Power Supply proves to be a versatile tool for any electronics lab or testing setup.
